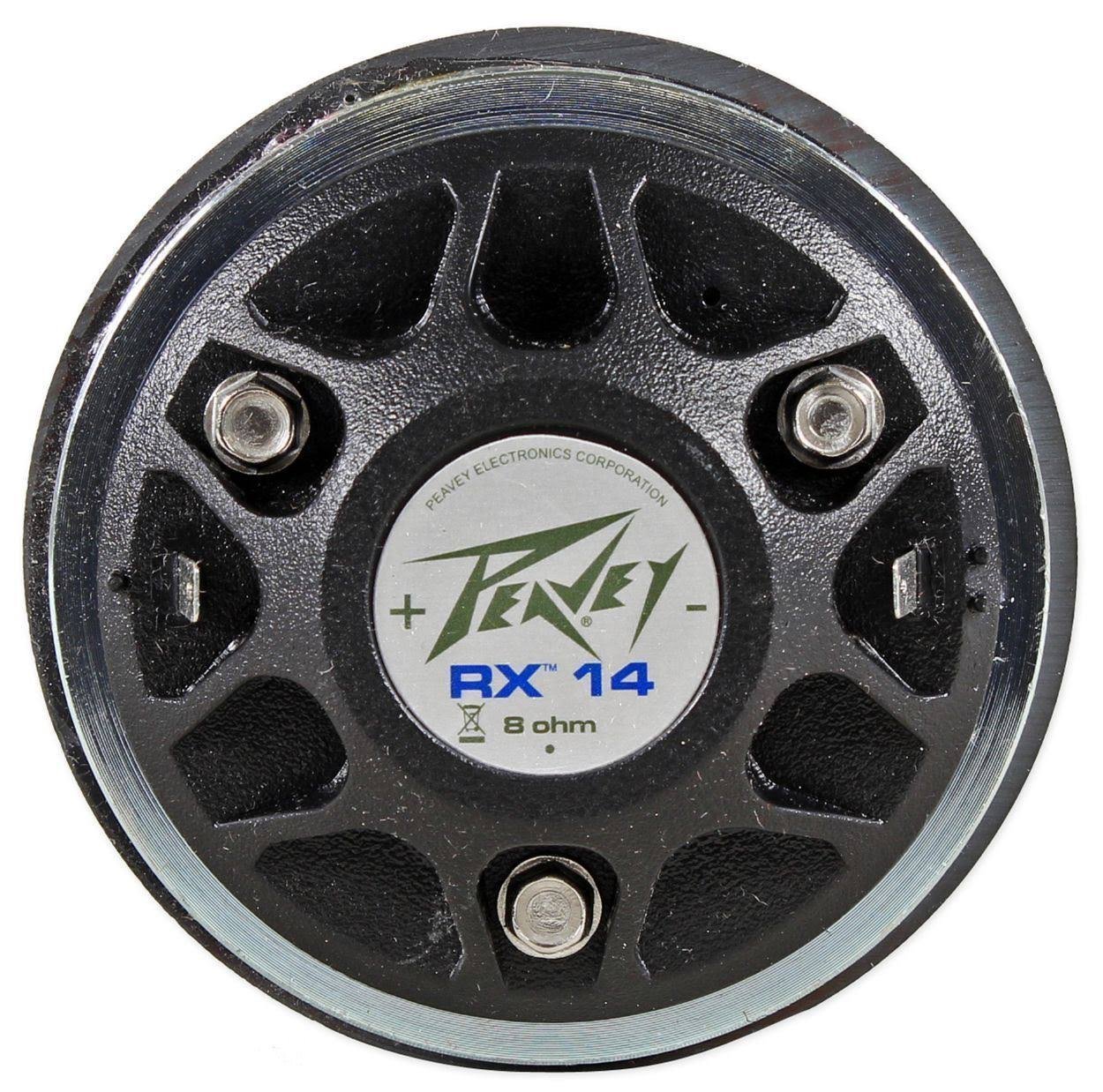

Peavey RX14 High Frequency Compression Driver

Peavey RX14 High Frequency Compression Driver

• Voice Coil Cooling: Ferrofluid
• Shipping Weight: 38 oz.
• Net Weight: 33.6 oz.
• Horn Coupling Threads: Standard 1 3/8" / 18"
• Horn Coupling Diameter: .938" (23.8 mm)
• Dimensions: 3.54" (90 mm) diameterx 2.40" (61 mm) depth
• Flux Density: 11,500 gauss (1.15T)
• Voice Coil Material: Edge-wound ribbon withhigh temp Kapton bobbin
• Voice Coil Diameter: 1.4" / 34.4 mm
• Diaphragm: Commercially pure titanium
• Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
• Recommended Crossover: 1,800 Hz at 12 dB / Octave
• Frequency Response: 1.5 kHz to 20 kHz
• Nominal Efficiency: 30%
• Sensitivity: 104 dB SPL 1 Watt at 1 meterOn-axis on 90º H x 45º V horn
• Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous
• DC Resistance: 6.8 Ohms
• Minimum Impedance: 7.1 Ohms
• Nominal Impedance: 8 Ohms
• Throat Parameter: .938" / 23.8 mm
• 1.4"
• Packed Weight: 2.26 lb (1.02 kg)
• Packed Length: 4.25" (10.79 cm)
• Packed Width: 4.25" (10.79 cm)
• Packed Height: 3.25" (8.26 cm)
